current system setup

2 fbsd machines, networked using cat5. one amd64, one allwinner h3. embedded one is nanopi neo core on my custom pcb with poe splitter and usb wifi. poe splitter is wired in a hack way so it provides ethernet transformer. almost like nanopi neo pcb. armv7 runs current

current test string is 200 leds. it was usb powered and has it's own pissy ble controller which has useless programs and bad fade. and it limits the leds to what usb and thin wire can do

i updated it, it's now incredibly bright. seems like they used full power leds. just skimped on wiring. those are wires that you can break if not careful, definitely not for power bus. if i turn it to 100% rgb white. it self limits current to like 2a. other end is 2v and red. i'm surprised ws2812 survives that intact and working

i don't know which ic is in mine. bit order is forward and color order is rgb

i added 1mm monofilament to the center of string to pull it up from. string is loosely wrapped around it. not twisting wire itself, just like how it feels like to go. the wires nor leds carry load. 10cm seems too many leds so i need 20cm pitch but i lost my first 1k set of 5v 20cm 0.5mm2 ones in china for year 2025 display

power and data is made of lenovo 65w laptop psu, 20v. using 1:1 opposite ended noname wagos. some wagos make up makeshift 5a glass axial fuse holders

power goes from this via 2*0.75mm2 / "0.75mm2" cable (? :p) to 5 mp1584en dcdc's. they are actually underrated for currents here. esp. the middle ones. 5v from them goes to 5 points in string in parallel, every 50 leds. while bad practice, this works. i don't have scope so no idea if it rings. string itself is resistive enough. power draw is like 2.2a so 45w

20v distribution is 3 10m 2*0.75mm2 in middle and 2 2*10m 2*0.75mm2 in ends

one end feeds sbc power badly from the low loaded 5v output via 10m 2*0.75mm2 cable

ideally this needs 230v mains direct to 5v. or at minimum shorter dc upstream wiring. the draw is massive. it's high enough to justify direct power

data is fed from spi mosi to "spi amplifier", actually some 7400 series buffer probably, which levelshifts it from 3.3v gpio to 5v. it's then fed to 2 max485 + buffer boards and then into leds. one is right next to leds, other near sbc, connected with 10m 2*0.75mm2 cable

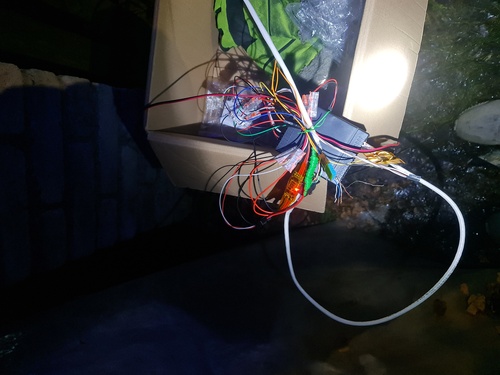

as i don't have working hot air nor transparent glue lined heatshrinks yet, i wrapped it all in kapton (ehm, "koptan" (!!!)) tape. while observing potential anti water electrolysis separation. parts of system i wrapped in reused packing film, while others got inside bucket under a tub with rock / concrete slab, lid, tire, whatever on top. i'm huge fan of reusing items like that

i only use natural trees and bushes for leds as i have many in my garden. it's filled with them

for code i skipped all that arduino, avr, fastled, esp, wled, wifi, etc. on purpose! instead i chose fbsd, perl, shell, ssh, (patched) spi(8) in c. and a spi bus directly. felt much better and sane. it generates requires waveforms using 3m spi bus, it's ^t has output like

-----------------------------------------------------------------

   /root/files/ws2812/spi.pl loop,bin
   real uid = 1013, real gid = 1013 1013 47
   effective uid = 1013, effective gid = 1013 1013 47
   AnyEvent::MODEL = AnyEvent::Impl::EV

   led count = 200, type = forward/rgb, data rate = 800k
   gamma = 1, correction factor = 2.8
   autofps = 123, fps = 123
   dynamic fps = ~ 10.000
   measured fps = 10, fps diff = 113
   frames = 22475

   stdin anim = 0, server anim = 0, server rgb = 0
   server colors = 0 0 0

   anim = 23, anim time = 100 ms, rand anim = 1
   start anims = 29
   rand anim list = 10 12 13 14 21 23 27 33 34
   descr =
   blue / yellow end to end bounce

   raw spi output = 2012 byte/frame, 20120 byte/s
                    161k bit/s (base 1000)

   uptime = 28 minutes and 28 seconds

   conn count = 2, conns = 2

-----------------------------------------------------------------

additionally, i looked deeper into dmx and it's cousins and reaiized it's awesome unified universal old legacy stage solution but it would limits me with fps, amounts, etc. even dmx ip solutions like artnet are as if piggypacked on. or it's like lipstick on a pig. ohm2013 did use it. supposedly it has no limits but meh. i even asked bob & dudes why. told it was enough, no wheel reinventing needed. but i was like wait a sec. in fact other, both open and close guys have made their own proto that's more suitable for fast color data. this is of course joke compared to real screens but fast enough. faster than dmx. and it seems like i could get away with perl here. people might say interpreted language is not a display driver and if i set it to real high strobes i can see it jittering. i mean rates high enough that it as if pwm dims the led down. actually at super high rates, i didn't see anything anymore at all. except slight perception or expectation that it's not solid color. we are way past visible here. this means it's fast for and outdoor christmas lights in the garden

example of max perf test on 1 c2d core (100% cpu, as fast as it goes)

@ 1766998867 = 3000 leds, 144 fps
@ 1766998868 = 3000 leds, 140 fps
@ 1766998869 = 3000 leds, 158 fps
@ 1766998870 = 3000 leds, 159 fps
@ 1766998871 = 3000 leds, 160 fps

some animations it runs

  number        description
-----------------------------------------------------------------

     0   ->   all off / black
     1   ->   color fade
     2   ->   all white
     3   ->   red / green slow swap
     4   ->   blue / yellow slow swap
     5   ->   red fade
     6   ->   yellow fade
     7   ->   blue strobe
     8   ->   faster white flash every so often
     9   ->   slower white flash every so often
    10   ->   few color blinks
    11   ->   one led color chase
    12   ->   one led end to end bounce
    13   ->   kitt scanner
    14   ->   somewhat slow color fill / change on all leds
    15   ->   all red
    16   ->   all green
    17   ->   all blue
    18   ->   white end to end bounce
    19   ->   all yellow
    20   ->   warm white
    21   ->   rainbow end to end bounce
    22   ->   all fast color blinks
    23   ->   blue / yellow end to end bounce
    24   ->   green fade
    25   ->   white fade
    26   ->   all red / green, odd / even alternating
    27   ->   color sweep
    28   ->   static random colors
    29   ->   static random red / green mix
    30   ->   static random red / green / 50% blue mix
    31   ->   all cyan
    32   ->   all magenta
    33   ->   blue / black / white end to end bounce
    34   ->   random color bar end to end bounce

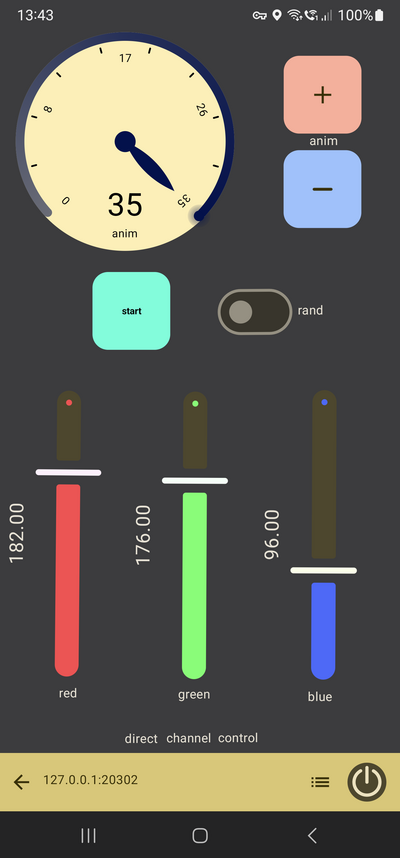

    35   ->   server direct rgb control
